5000L Stainless Steel Storage Tanks

Home » Stainless Steel Water Storage Tank » 5000L Stainless Steel Storage Tanks

Introduction

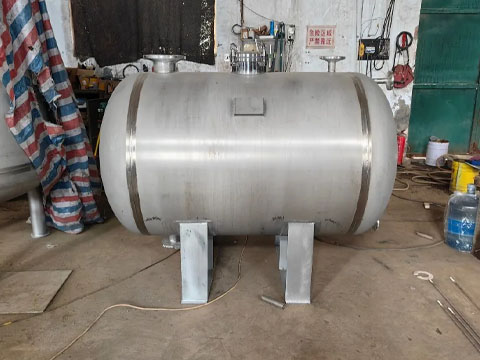

Our 5,000-liter stainless steel storage tanks are welded from high-quality stainless steel and are suitable for storing water, oil, wine, and other liquids. They are available in both vertical and horizontal configurations and offer a high degree of customization. In addition to our 5,000-liter stainless steel storage tanks, we also offer tanks in other capacities and with additional features (such as mixing tanks). Please feel free to contact us at any time with your specific requirements.

Material: 304 Stainless Steel
Capacity: 5,000L/5 tons/1,320.86 gallons

send us email

Leave a Message

wahtsapp

Technical Parameters

Product Name	5000L stainless steel storage tank	Insulation Material	Polyurethane
Diameter	1.8m	Material	304 Stainless Steel
Height	2.7m	Tank Process	Polishing, Pickling
Manhole Diameter	400mm	Type	Vertical/Horizontal
Flange Type	dn-50	Welding Process	Argon Arc Welding
Volume	5m³(5000L)	Applications	Food/Brewing/Chemical Industry
Stainless Steel Plate Thickness	2mm	Remarks	Fittings, accessories, level gauges, breathers, agitators, etc. can be added.

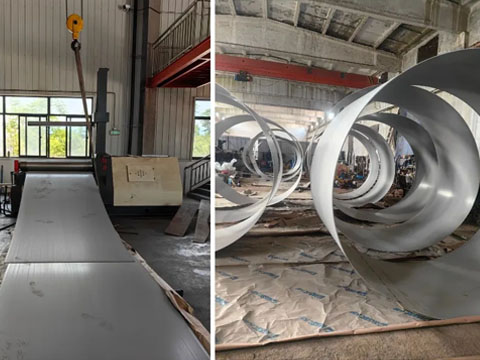

Our Manufacturing Process

Material Selection → We use high-quality 304 stainless steel, with thickness determined based on pressure-bearing capacity and volume calculations.
Cutting and Rolling → CNC cutting ensures dimensional accuracy, while large-scale rolling machines form the parts in a single pass, minimizing the number of welds.
Welding → We use automated TIG (Tungsten Inert Gas) or plasma welding to ensure full weld penetration and a minimal heat-affected zone; 100% of critical welds undergo radiographic or dye penetrant testing.
Surface Treatment → The inner walls undergo mechanical polishing followed by acid washing and passivation; the outer surface can be finished with brushed, mirror-polished, or sandblasted treatments to enhance corrosion resistance and ease of cleaning.
Assembly and Testing → Installation of accessories such as manholes, valves, and breathers; performance of hydrostatic, pneumatic, and leak tests; all test data is archived.
Pre-shipment Cleaning → Degreasing, washing, and blow-drying according to customer medium requirements, followed by sealing and packaging.

We support custom manufacturing based on provided drawings and can customize special interfaces, jackets, agitators, and other components according to CAD/3D drawings.

Structural Composition and Uses

Structure Name	Design Features and Functions

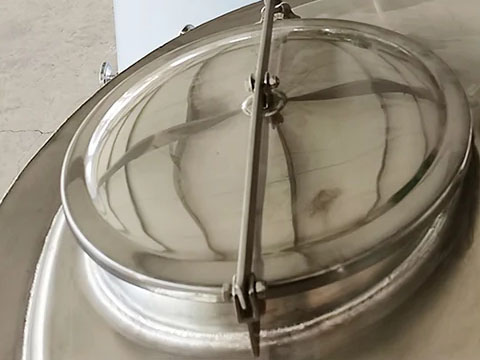

Sealing System	The tank top and bottom utilize specialized sealing gaskets, coupled with high-performance sealing devices at manholes and connection points, to completely prevent the intrusion of air, dust, and insects, ensuring the purity of the medium and its long-term storage stability.

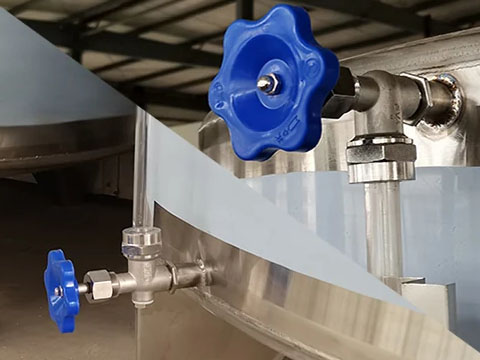

Dual Hydraulic Valve	The innovative dual hydraulic valve arrangement saves time and effort during operation, with smooth and stable opening and closing, making it particularly suitable for frequent drainage or high-flow-rate operations.

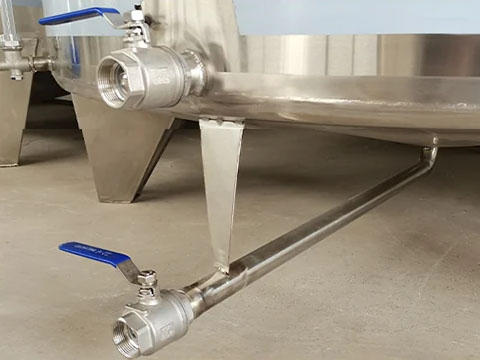

Separate Valve	The valves and tank body employ a separate structural design, eliminating the risk of leakage and facilitating disassembly and cleaning, meeting hygiene requirements (food and brewing).

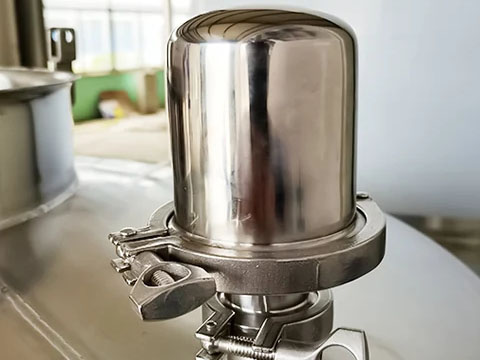

Breather (Filter-type Exhaust Valve)	A built-in filter-type breather automatically balances the internal pressure while preventing the entry of external particles and microorganisms, ensuring the safety and hygiene of the storage tank during liquid level changes.
Optional Accessories	Level gauges, temperature sensors, CIP cleaning balls, heating/cooling jackets, insulation layers, casters/outriggers/saddles, etc., can be configured as needed.

Advantages of Our Stainless Steel Tanks

Aesthetic and Durable: Every inch of the welds is meticulously polished, ensuring there are no sharp edges or hard-to-reach corners inside or outside the tank. We never cut corners; all components are manufactured strictly according to specifications to ensure long-term use without deformation or corrosion.
Excellent Sealing Performance: Made with high-quality materials, the tank structure is stable and reliable. Combined with a multi-stage sealing design, it offers superior airtightness and liquid tightness, effectively preventing evaporation, leakage, and secondary contamination.
High Pressure Resistance: 304 stainless steel inherently possesses high mechanical strength. Combined with a rational wall thickness design, it can withstand pressures ranging from 0.6 MPa to 1.6 MPa or even higher.
Excellent Thermal Insulation: Stainless steel has a low thermal conductivity, naturally slowing heat exchange. When equipped with polyurethane or rock wool insulation plus an outer jacket, it significantly maintains a constant internal temperature.
Easy to clean: The inner walls feature a mirror-finish or matte polish (Ra ≤ 0.6 μm), leaving no residual dead corners; the design supports CIP (Clean-in-Place) cleaning, improving cleaning efficiency and reducing manual intervention.

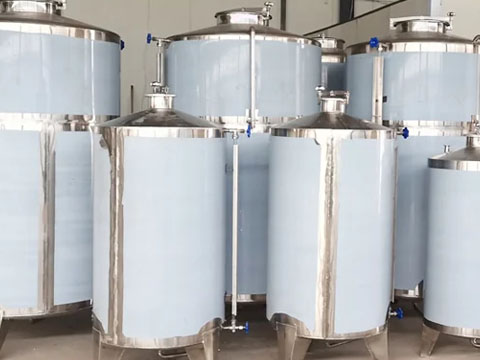

Stainless steel storage tanks of different specifications

Applications

Food Industry: Purified water, edible oils, syrups, fruit juices, condiments.
Brewing and Fermentation: Beer wort, wine, rice wine, spirits, and mash.
Chemical and Petrochemical Industries: Solvents, additives, lubricants, light oils, and weak acid/base solutions.
Pharmaceuticals and Biotechnology: Purified water, water for injection, culture media, and buffers.
Agriculture and Environmental Protection: Liquid fertilizers, wastewater collection, and rainwater reuse.

Factory stainless steel water storage tank

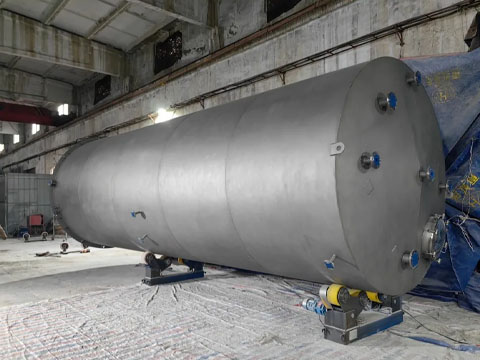

Horizontal stainless steel wine storage tank

Why Choose Us?

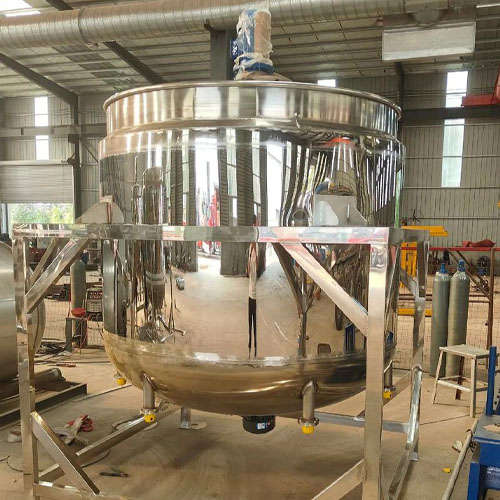

Our stainless steel tanks are primarily designed for applications such as water storage, oil storage, wine storage, and chemical raw material storage. In addition to our core 5,000L model, we offer customization across the full range of capacities. We also manufacture a variety of specialized tanks, including mixing tanks, transport tanks, fermentation tanks, and temperature-controlled tanks. We support customization based on provided drawings and adjustments to meet specific requirements, catering to the unique production needs of various industries.

If you are looking for a 5,000L stainless steel storage tank, or require tanks of different capacities (100L–100,000L) and with specific features (such as agitation, temperature control, or mobility), please feel free to contact us at any time. Please provide details regarding your storage medium, operating pressure, temperature requirements, and on-site drawings, and we will provide you with free technical advice and a product quote.
