Vertikale Etikettiermaschine für runde Flaschen
Einführung
Vertical round bottle adhesive labeling machine is upright wrap-around labeler built for round bottles and jars. It peels a self-adhesive label, wraps it around the container in one pass, and holds plus or minus 1 mm placement at up to 200 bottles per minute. People buy one the moment hand labeling stops keeping up, when labels go on crooked, or when a buyer or regulator wants a batch number and expiry date on every unit.
If you run a food, beverage, pharma, or chemical line, the label is the last thing the customer touches before they trust the product.
What the round bottle labeler does

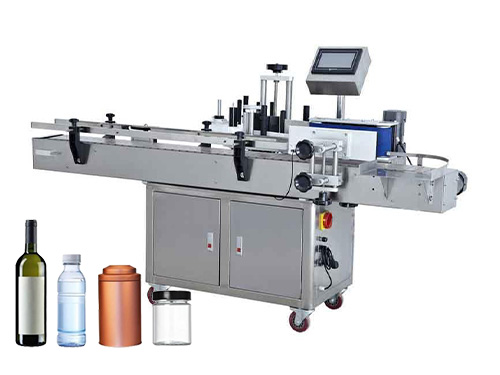

The round bottle adhesive labeling machine is a vertical, self-adhesive labeling machine made for round containers. You feed bottles in from the left on the conveyor, a pair of wrap belts spins each bottle as it passes the peeler, and the label goes on straight and tight in a single wrap. It handles water bottles, juice bottles, oil bottles, cosmetic jars, medicine vials and most other round shapes between 20 mm and 100 mm in diameter.
People pick it when a manual label gun cannot keep up, or when a semi-auto unit leaves bubbles and crooked edges. At full speed it puts labels on 200 bottles a minute with a placement accuracy of plus or minus 1 mm, which is enough for most export and retail runs.
Schnelle Highlights
- Geschwindigkeit: 0 to 200 bottles per minute, stepless
- Genauigkeit: plus or minus 1 mm repeatable
- Bottle fit: diameter 20 to 100 mm, height 25 to 300 mm
- Build: T6 aluminium frame with SUS304 contact parts
- Steuern: Delta PLC and servo, WEINVIEW touch screen
- Sicherheit: no bottle no label interlock

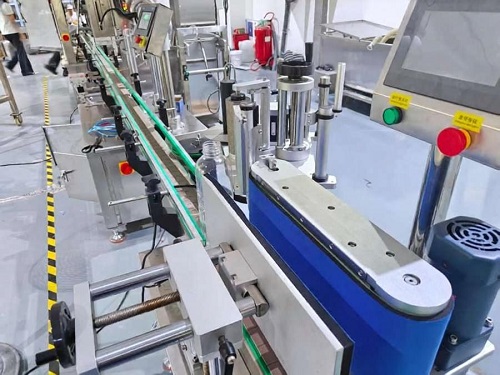

It works as a standalone unit on a bench or table, and it also drops into a line with a Abfüllmaschineherunter, eine Vakuumversiegelung and a capper. Because the 4-head paste filler we sell already lists an automatic labeling machine as the final station, the round bottle labeler is the natural match for that line.
technische Spezifikationen
The numbers below are the ones buyers compare before they order. We adjust the conveyor length, frame colour and label roll holder on request.
| Parameter | Normen |
|---|---|
| Produktname | MT-200 Vertical Round Bottle Adhesive Labeling Machine |
| Fahrmodus | Servomotorantrieb |
| Vorschubrichtung | Left in, right out (customisable) |
| Etikettiergeschwindigkeit | 0 to 200 pieces per minute (stepless) |
| Anwendbarer Flaschendurchmesser | 20 zu 100 mm |
| Anwendbare Flaschenhöhe | 25 zu 300 mm |
| Label size (height x length) | 10 to 110 mm x 15 to 200 mm |
| Beschriftungsgenauigkeit | plus oder minus 1 mm |
| Außendurchmesser der Etikettenrolle | 200 mm (max.) |
| Innendurchmesser der Etikettenrolle | 75mm |
| Energieversorgung | AC 110/220V, 50/60Hz, 500W |
| Maschinengröße (L x B x H) | 2000 x 1300 x 1500 mm |
| Gewicht der Maschine | 200 kg |
| Rahmen Material | T6 aluminium alloy + SUS304 stainless steel |
| Packungsgröße | 2100 x 1000 x 1600 mm (wooden case) |
| Compliance | CE, ISO 9001, GMP |
Key components and the brands behind them
A labeler lives or dies on its sensor and control parts. The labeling machine uses named, replaceable brands rather than no-name boards, so when something wears out you can source the exact part locally.
- Delta PLC and servo system handle motion control and speed. The servo keeps the wrap belt and bottle speed locked together, which is what holds the plus or minus 1 mm accuracy.
- WEINVIEW touch screen HMI is where you set bottle size, label length and speed. Recipes save, so changeovers are a few taps instead of manual tuning.
- Leuze label sensor reads the gap between labels on the backing paper and triggers the peel at the right spot. It works with transparent and opaque labels.
- Omron bottle sensor detects each bottle at the entry. If no bottle arrives, the machine skips the label instead of wasting one.
- CHINT low-voltage electrics run the safety and power circuits, with standard breakers you can replace anywhere.
- VTV DC gear motor drives the conveyor and wrap belts with steady torque at low speed.

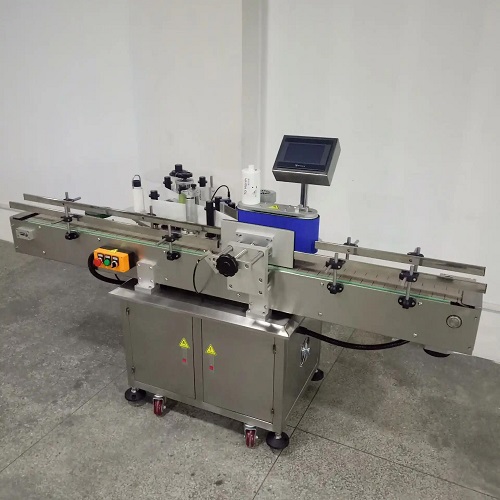

For the frame and parts that touch the product, we use 304 Edelstahl as standard and 316L where the line runs salty, acidic or cleaning-heavy. Both grades come from our sister steel mill, so the material certificate travels with the machine.

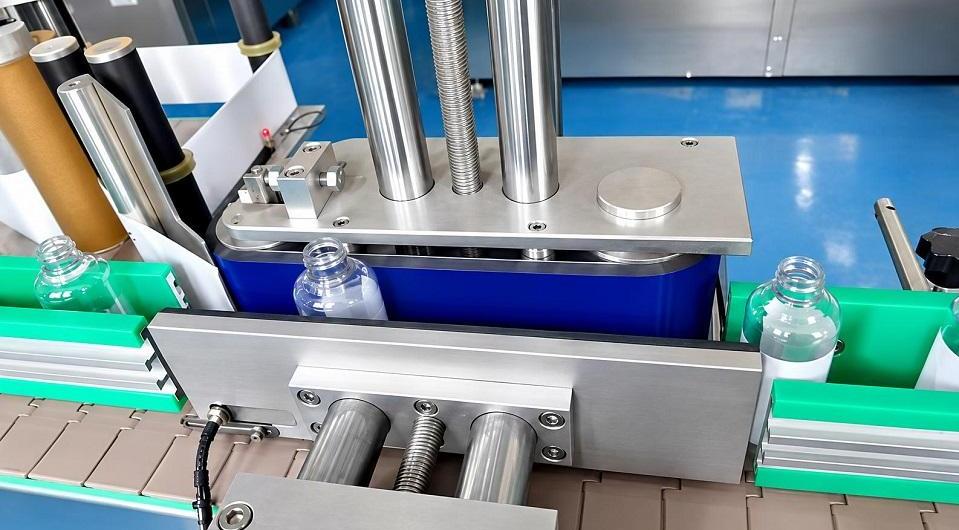

How the labeling machine wraps a label on a round bottle
- Bottle in. Bottles ride the conveyor from the left. The Omron sensor counts each one and the spacing wheel sets a fixed gap.
- Label peel. The self-adhesive label feeds over the peeler plate. As the backing paper bends away, the label lifts off and waits at the applicator edge.
- Wickeln. The bottle meets a pair of rotating wrap belts. They spin the bottle against the held label so it rolls on evenly around the full circumference, no bubbles, no fold.
- Brush and out. A brush presses the trailing edge down, the bottle leaves to the right, and the next one enters. Speed scales from a slow single bottle up to 200 per minute.
The whole cycle is closed-loop: the Leuze sensor confirms a label existed before the peel, and the bottle sensor confirms a bottle existed before the apply. Miss either and the step is skipped.
Where the labeling machine fits
It is a round-container labeler first, so anything cylindrical is fair game. The wrap action is what makes it suit bottles and jars that need a label all the way around.
Branchen
- Beverages: water, juice, tea, beer and soda in PET or glass
- Food: edible oil, sauce, honey, jam in round jars
- Personal care: shampoo, lotion, cream in round bottles
- Pharmaceuticals: tincture bottles, vials, round medicine jars
- Chemicals: lubricants, cleaners in round containers
Bottle types it handles
- Round PET bottles, 20 to 100 mm diameter
- Glass round bottles and jars
- HDPE round bottles for detergent and oil
- Small vials and essential oil round bottles
- Tall round containers up to 300 mm high
For square or flat bottles you would want a different applicator head; the Vertical round bottle adhesive labeling machine is built around the wrap-around method for round shapes. If your line also needs filling, pairing it with a 4-head paste filler und einem Vakuumversiegelung gives you a complete bottle line from empty to labelled.
Häufig gestellte Fragen
It peels a self-adhesive (sticky-back) label and wraps it around a round bottle or jar in one pass, replacing manual sticker application with a steady, accurate line.
Round containers from 20 to 100 mm in diameter and 25 to 300 mm in height. Labels can be 10 to 110 mm tall and 15 to 200 mm long.
Plus or minus 1 mm repeatable, held by the Delta servo and the Leuze label gap sensor working together.
Yes. The Leuze optical sensor reads the gap between labels rather than the print, so clear and opaque labels both register.
Yes. It connects with conveyors to a filler, capper and sealer. Our 4-head paste filler already lists an automatic labeling machine as its final station, so the MT-200 slots in directly.
A date coder (HP-260Q), a second labeling head for front and back, a bottle unscrambler, and a larger label roll holder. Tell us your line layout and we size the options.
Warum Wanzhi wählen?
- Als Anbieter kompletter automatisierter Produktionslinienlösungen bieten wir einen Komplettservice, der alles von Abfüllmaschinen bis hin zu Verschließ- und Etikettiermaschinen abdeckt. Abdichtung.
- Dank unserer langjährigen Erfahrung haben wir unsere Produkte erfolgreich in über 120 Länder exportiert und einen großen Stamm treuer Kunden aufgebaut.
- Wir bieten eine breite Produktpalette an, darunter nicht nur vollautomatische Abfüllmaschinen, sondern auch halbautomatische Abfüllmaschinensowie Pastenabfüllmaschinen mit zwei, acht und zwölf Köpfen.
Als professioneller Anbieter von Lebensmittelmaschinen mit über 15 Jahren Erfahrung in der Herstellung und im Export verfügen unsere Produkte über zahlreiche Zertifizierungen. Sollten Sie weitere Anforderungen an Lebensmittelmaschinen haben, kontaktieren Sie uns gerne.
Get an MT-200 quote for your bottles
Tell us your bottle diameter, height, label size and target speed. We return a configuration, a lead time and a price. The MT-200 is built to order at our factory, so the frame, conveyor and options match your line rather than a fixed template.
Talk to the labeling team at Wanzhi Machinery oder durchsuchen Sie die Verpackungsmaschine range for fillers, sealers and pouch packers that run alongside it.
