Commercial Stainless Steel Vegetable Oil Storage Tanks

Home » Stainless Steel Oil Storage Tank » Stainless Steel Vegetable Oil Storage Tanks

Introduction

Commercial vegetable oil storage imposes stringent requirements on tank materials and manufacturing processes. Our stainless steel vegetable oil storage tanks are meticulously crafted from food-grade 304 stainless steel. With their excellent heat resistance and oxidation resistance, they easily withstand frequent filling and emptying operations as well as high-temperature sterilization environments, ensuring safe and stable storage of vegetable oil.

Our stainless steel vegetable oil storage tanks come in a variety of sizes and offer high customization. Please feel free to contact us with any inquiries!

send us email

Leave a Message

wahtsapp

Specifications

Volume range	50L-30000L (0.05-30 cubic meters)
Tank material	304 Stainless Steel
Tank diameter	Standard 400mm-2800mm, custom sizes available
Tank height	1200mm-6500mm
Outrigger height	Standard 300mm-800mm, with space reserved for sewage discharge, material receiving, and equipment maintenance
Tank wall thickness	Commercial Thickened Version 2.0mm-5.0mm
Weight	80kg-3200kg
Welding process	Argon Arc Welding with Fish Scale Pattern
Manhole	Top Circular Atmospheric Pressure Manhole
Breathing device	Equipped with Automatic Food-Grade Breathing Apparatus

Structural Components

This storage tank consists of core components such as the main tank body, legs, manhole assembly, automatic breather, level gauge, and discharge system.

The tank is designed in either a vertical or horizontal configuration. The top of the tank is equipped with an automatic breather and a sealed manhole, while the bottom features a funnel-shaped drain structure and a discharge outlet. A transparent level gauge is installed on the side to facilitate real-time monitoring of the oil level.

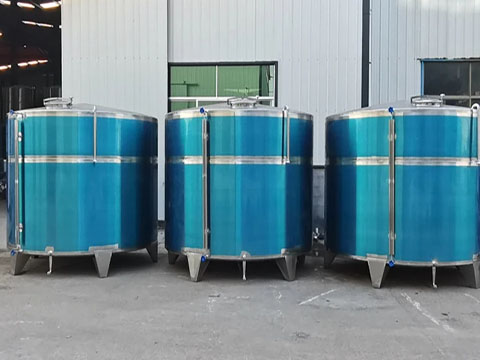

Produced stainless steel vegetable oil storage tanks

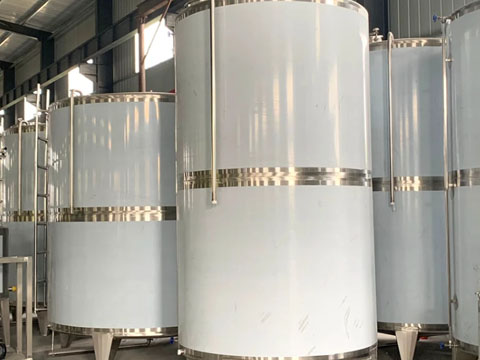

Stainless steel storage tanks of different specifications

Advantages of Our Vegetable Oil Storage Tanks

When selecting a vegetable oil storage tank, the material and sealing performance determine both the tank’s long-term durability and the effectiveness of oil preservation. 304 stainless steel storage tanks meet both of these requirements.

304 Stainless Steel: Manufactured from high-quality 304 stainless steel, these tanks offer corrosion and oxidation resistance far superior to ordinary stainless steel. The tank body is sturdy and durable, with excellent resistance to pressure and impact.
Sealed Manhole: The manhole features an embedded sealing structure paired with a thickened food-grade sealing gasket, ensuring a tight fit and excellent sealing performance.
Level Gauge Valve: Equipped as standard with a high-definition, corrosion-resistant level gauge. The valve operates smoothly and effortlessly, allowing for simple, intuitive monitoring of the remaining oil level and clarity inside the tank without opening the lid.
Welding Process: Utilizing argon arc welding with a fish-scale pattern, the welds are smooth and uniform. Both the interior and exterior are ground and polished, ensuring no pores or sand holes, resulting in high weld strength and excellent sealing performance.

Why Are 304 Stainless Steel Tanks Suitable for Storing Vegetable Oil?

Vegetable oil is rich in unsaturated fatty acids and is highly susceptible to oxidation and spoilage due to the material of the container and environmental factors. Ordinary iron or plastic containers are completely unsuitable for long-term commercial oil storage, whereas 304 food-grade stainless steel is the optimal material for storing grains and oils.

Prevents Oxidation and Spoilage: The material is chemically stable and, unlike iron containers, does not catalyze the oxidation of oils, causing them to turn sour or develop off-flavors. This preserves the original flavor and quality of vegetable oil to the greatest extent possible and extends the oil’s shelf life.
Easy to clean with no residual contamination: The tank features a mirror-polished finish with smooth, fine inner walls that prevent oil from clinging and prevent residue buildup. Routine cleaning involves simply rinsing with clean water and high-temperature sterilization, leaving no oil residue and preventing bacterial growth.
Wide Temperature Range and Strong Adaptability: Withstands temperature fluctuations from -20°C to 120°C. Supports high-temperature steam sterilization and hot water washing. It withstands high-temperature workshop operations and low-temperature storage in winter, ensuring stable year-round use without material aging or cracking.
Corrosion and Aging Resistance: Effectively resists corrosion from acidic substances in vegetable oils and moisture. It remains rust-free and corrosion-free during long-term oil storage, preventing secondary contamination of the oil and significantly extending the equipment’s service life.

Why Choose Us?

We are an original manufacturer with our own production facilities and a full range of processing equipment. We maintain full control over the entire production process, ensuring consistent product quality and performance.
Based on information such as the customer’s site conditions and required storage capacity, we can recommend the most suitable stainless steel tanks and customize tanks of various volumes and heights.
We provide dedicated support throughout the pre-sales, sales, and after-sales phases—from model selection advice and installation guidance to post-sales maintenance—and are always ready to respond to your needs.

Wanzhi Machinery is a professional stainless steel tank manufacturer in China with a 15-year history. We have always operated with integrity. If you have any needs for stainless steel tank products, please feel free to contact us at any time.
