Beer Fermentation Tank
Introduction

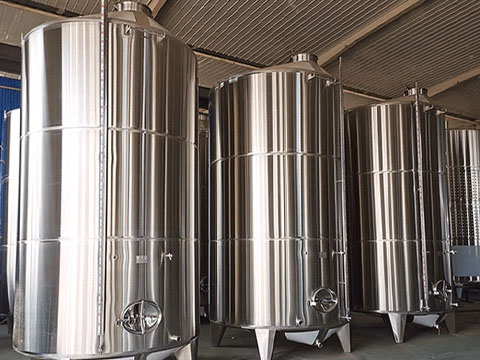

This stainless steel beer fermentation tank is a core piece of equipment designed specifically for modern beer brewing processes. Made of high-quality austenitic stainless steel (304/316L), it integrates fermentation, maturation, and clarification.
Through its scientifically designed conical structure, efficient cooling system, and comprehensive accessory support, it provides an ideal conversion environment for yeast, ensuring stable beer flavor and maximizing production efficiency. This equipment is also suitable for fermentation and storage processes in the dairy, beverage, and bioengineering industries.
- Capacity: 300L – 5000L+
- Material: SUS304/SUS316L
Technical Parameters
| Nominal Volume | 300L – 5000L+ |
| Tank Diameter (mm) | φ800 – φ1600 |
| Tank Height (mm) | 600 – 1500 |
| Motor Power (KW) | 0.55 – 3 |
| Agitator Speed (rpm) | 36 rpm |
| Working Pressure | ≤0.09 MPa |
| Working Temperature | ＜100℃ |

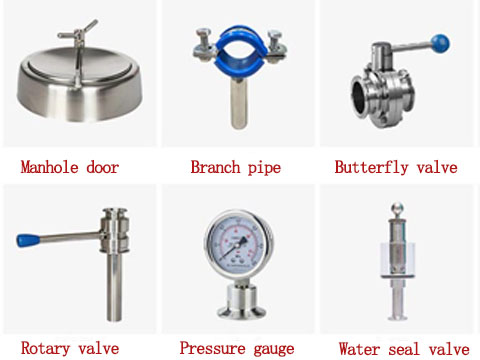

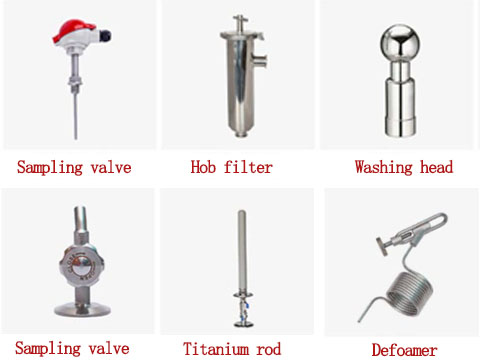

| Basic Accessories | Thermometer, safety valve, pressure gauge, etc. |

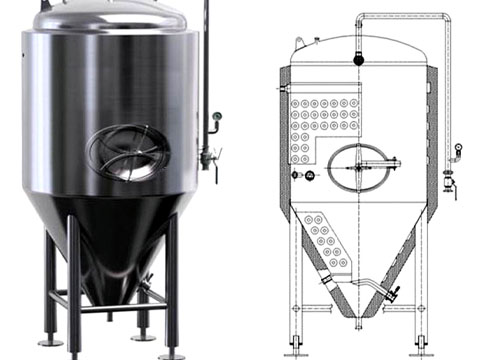

Core Design and Structure
Rational Structure
- Tank Body: Utilizes a cylindrical body and a dish-shaped top cover, ensuring structural stability.
- Conical Bottom: The 60° to 90° conical bottom design conforms to fluid dynamics. It promotes strong convection within the tank, accelerating the fermentation process, while ensuring the rapid and thorough collection and removal of yeast and impurities, greatly facilitating cleaning and waste removal.
High-Efficiency Temperature Control System

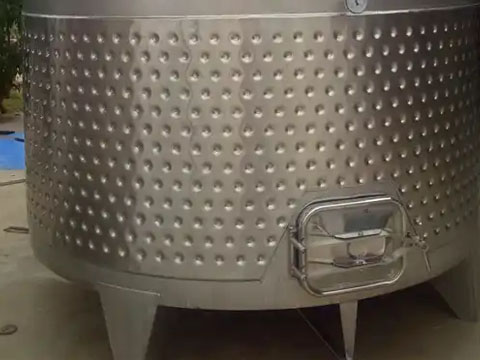

- Both the tank body and conical bottom are equipped with honeycomb (Millet plate) cooling jackets. This design increases the heat exchange area, significantly improving cooling speed and precisely controlling the temperature required at each stage of fermentation.
- The jacket is covered with a polyurethane (PU) insulation layer, and the outer sheath is made of fully welded stainless steel, effectively isolating heat exchange and ensuring energy efficiency.
Superior Craftsmanship and Materials
- Inner Surface: Precision mechanically polished to a mirror finish with a precision of Ra≤0.4μm, resulting in a smooth and translucent surface that eliminates cleaning dead zones and effectively prevents wort residue and bacterial growth.
- Interface: Employs an internationally recognized sanitary quick-connect chuck interface for convenient connection, easy cleaning and maintenance, ensuring a contamination-free system.
Why Choose Us?
Our Advantages
- Superior Internal Processing: Polishing + acid washing process ensures no residue and easy cleaning, eliminating the risk of wort contamination.
- Efficient and Practical Structure: The conical bottom reduces friction between yeast sludge and the tank wall, facilitating smoother sludge and waste removal.
- Efficient Temperature Control and Energy Saving: The Miller plate jacket design optimizes refrigerant flow, significantly reducing cooling time.
- Convenient and Worry-Free Operation: Oval manholes + rational interface layout reduce maintenance difficulty and labor intensity.
The beer fermentation tanks we can supply include

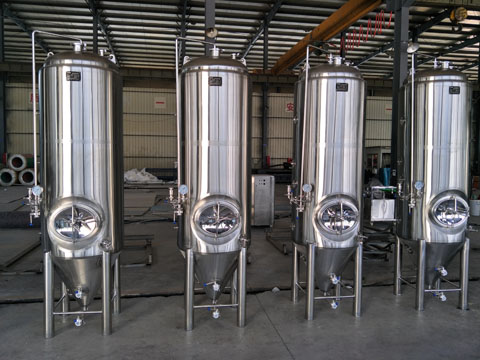

- Conical (Vertical) Fermentation Tanks: The most common stainless steel fermentation tank, with a cylindrical body and conical bottom.
- Horizontal Fermentation Tanks: Horizontally placed cylindrical fermentation tanks, often used in specific scenarios.
- Pressure Fermentation Tanks: The tank body is completely sealed, capable of withstanding and actively controlling internal pressure.
- Ambient Pressure Fermentation Tanks: During fermentation, the top of the tank is connected to the atmosphere through a fermentation valve, allowing CO₂ to escape while preventing air from entering.
We are a leading stainless steel tank supplier in China with over 14 years of operating history. Our company is certified to multiple standards, including ISO 9001 and ISO 14001. We consistently cooperate with our clients based on integrity and mutual benefit, and our customers are generally satisfied with both our products and our company. Please feel free to contact us if you have any purchasing needs.
