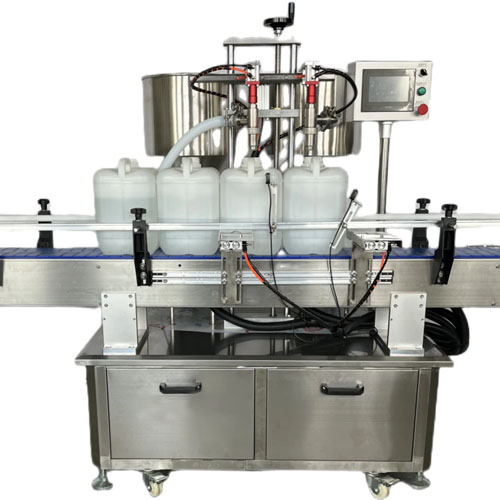

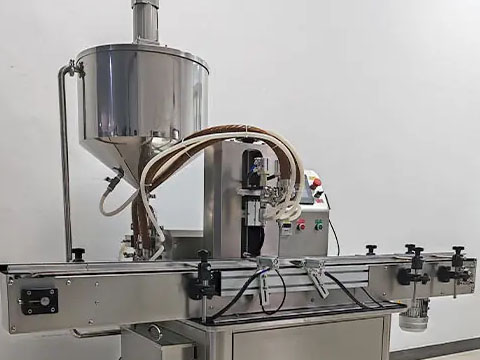

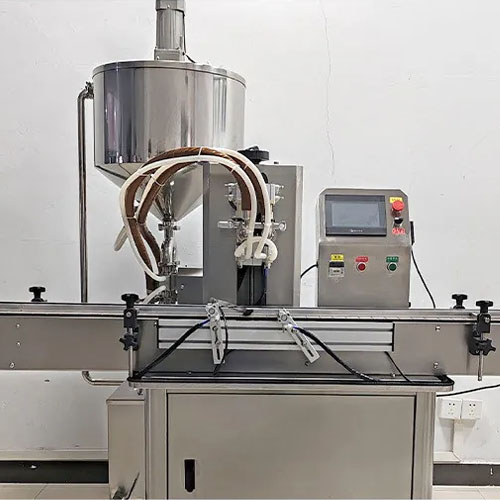

Fully Automatic Dual-Head Paste Filling Machine

Home » Sauce Filling Machine » Fully Automatic Dual-Head Paste Filling Machine

Introduction

This machine features dual independent servo motor drives and corrosion-resistant stainless steel gear pumps, specifically designed for high-viscosity, high-value pastes and liquids. It integrates linear bottle feeding, automatic sensing, and touchscreen control into a single unit, enabling high-speed, high-precision, drip-free automated filling. It is widely compatible with a variety of bottle shapes and materials.

In addition to our fully automatic paste filling machines, we also offer 4-head paste filling machines. If you have any needs related to food filling machines, please contact us for more details.

send us email

Leave a Message

wahtsapp

Working Principle

This machine employs a volumetric metering filling principle. The core process is as follows:

Feeding and Metering: The material enters the corrosion-resistant stainless steel gear pump chamber via a stainless steel hopper. A servo motor drives the gear pump to rotate precisely, using the positive displacement created by the meshing gears to dispense a measured volume of material.
Synchronized Bottle Feeding: Bottles on the conveyor belt are automatically aligned via a linear feeding track. Once the bottle-in-position photoelectric sensor detects that a bottle is in place, the PLC issues a command.
Filling Execution: The dual filling heads descend synchronously (if configured for the model). The servo gear pump rotates at a preset speed and number of revolutions, injecting a metered volume of material into the bottle through the filling nozzle. The servo system allows real-time adjustment of the filling speed, enabling “fast-slow” dual-speed filling to prevent foaming or splashing.
Bottle Discharge and Counting: Upon completion of filling, the filling nozzles close (to prevent dripping), and the conveyor belt transports the bottles out. The touchscreen allows flexible setting of the number of bottles to be filled and supports the ability to disable any individual discharge head, accommodating temporary single-head operation requirements.

Technical parameters

Product Name	Fully Automatic Dual-Head Paste Filling Machine
Voltage	220V 50Hz
Power	5KW
Dimensions	1800 × 850 × 1400 mm
Output	60 bottles/min (up to 100 ml)
Bottle Height Range	30–200 mm
Bottle Width Range	15–100 mm
Filling Accuracy	0.5%–1% (depending on material)
Line Speed	15 m/min
Flow Rate	Single-head: 5 L/min
Net Weight	80kg
Suitable Materials	Liquids and pastes
Material	304 stainless steel

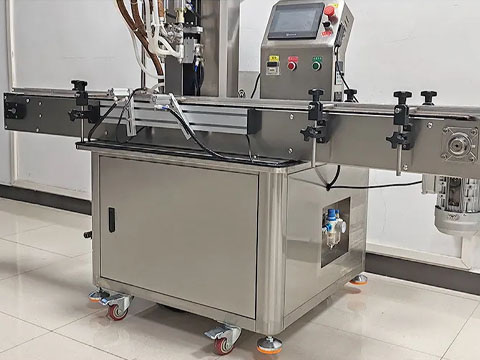

Structural Components

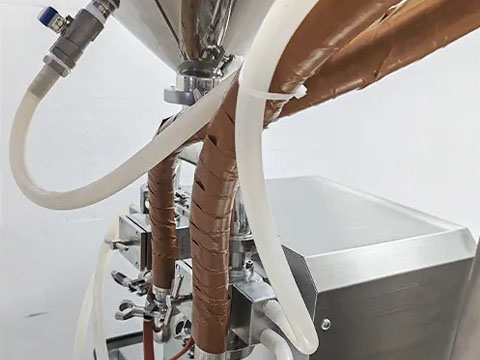

Servo Gear Pump Assembly: The core power component of the equipment, constructed from corrosion-resistant stainless steel. The gears mesh precisely to ensure stable filling flow rates. It also features convenient cleaning and tube changing capabilities, enabling rapid material switching.
Stainless Steel Hopper: Used to store materials awaiting filling. All material-contact surfaces are made of 304 stainless steel with a mirror-polished finish, ensuring no material residue, easy cleaning, safety and hygiene, corrosion resistance, and wear resistance.
Linear Conveyor Belt: Driven by a branded motor, it offers strong carrying capacity and smooth operation. Combined with a linear bottle feeding design, it accommodates various bottle sizes, with the conveying speed synchronized with the filling speed.

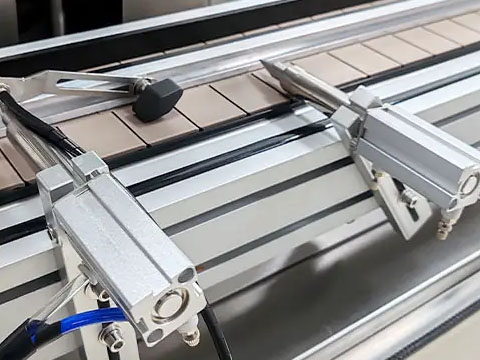

Automatic Sensing System: Equipped with high-precision photoelectric sensors for bottle entry and exit, it ensures no filling occurs without a bottle and automatically stops when the bottle is full. It supports segmented counting and filling.

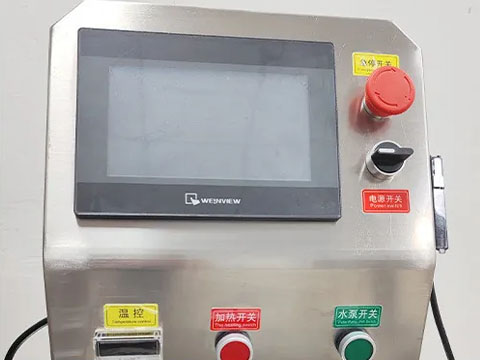

Control Panel: Features an integrated design with a simple and intuitive interface. A single button controls equipment start/stop, filling volume adjustment, bottle count settings, and single/dual-head switching.
Sturdy Base: Constructed from high-strength materials, it is heavy-duty and highly stable, effectively reducing vibration during operation.

Key Advantages

Exceptional Filling Accuracy: A servo motor directly drives the gear pump, ensuring a fixed displacement per revolution. This system is unaffected by fluctuations in air pressure or changes in product temperature, delivering accuracy far superior to traditional pneumatic piston-type systems.
Extremely Versatile Product Compatibility: From liquid solutions to viscous pastes (such as honey, jam, butter, and even hot sauce), the system ensures stable filling without compromising the product’s texture.
Rapid Cleaning and Changeovers: The gear pump, tubing, and filling nozzles can all be quickly disassembled without tools. When switching between different materials on the same machine model, simply clean the pump body and tubing—a simple and convenient process.
Robust and Stable, Smooth Operation: The frame is constructed from thickened stainless steel square tubing welded together, and the base is heavy-duty. Even during high-speed dual-head filling, the machine exhibits no noticeable vibration and operates with low noise.

Applications

This machine is widely used for filling viscous liquids and pastes in industries such as food, condiments, personal care, and pharmaceuticals:

Food and Beverages: Milk, yogurt, honey, syrup, jam, butter, concentrated fruit juice, etc.
Condiments: Chili sauce, bean paste, tomato sauce, peanut butter, sesame paste, oyster sauce, etc.
Personal Care Products: Shampoo, body wash, laundry detergent, conditioner, lotion, creams, etc.
