Fully Automatic 4-Head Paste Filling Machine

Home » Sauce Filling Machine » Fully Automatic 4-Head Paste Filling Machine

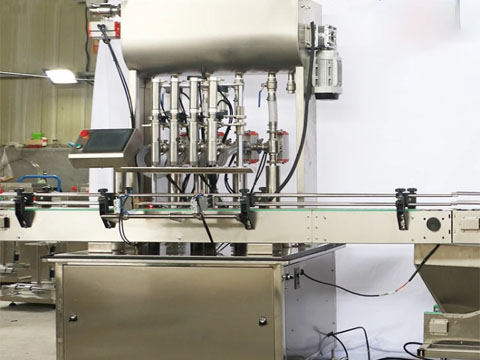

Introduction

The fully automatic 4-head paste filling machine is specifically designed for paste-like materials such as creams, sauces, honey, and chili sauce. Featuring an industrial-grade construction that is corrosion-resistant, heat-resistant, and resistant to acids and alkalis, it supports 24-hour continuous operation and is a truly intelligent filling solution capable of handling high-intensity and complex operating conditions.

This equipment addresses the technical challenges of filling pastes and high-viscosity materials, ensuring filling accuracy while allowing for specific adjustments to accommodate the characteristics of different materials (such as poor flowability, stringiness, or the presence of particles). If you require filling equipment, please contact us. Our product range includes:

Semi-automatic paste filling machine
2-head paste filling machine
6-head paste filling machine

send us email

Leave a Message

wahtsapp

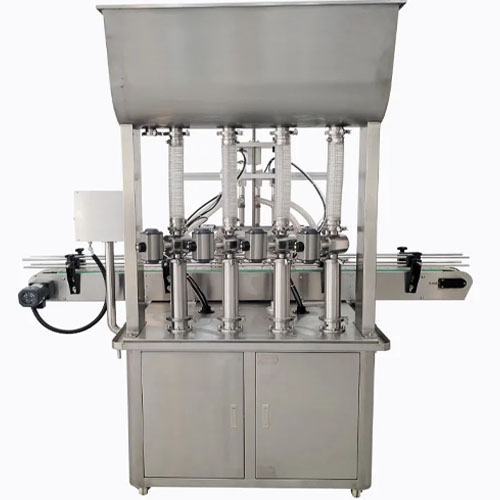

Working Principle

This machine employs a piston-type volumetric filling principle, combining pneumatic drive with PLC logic control to achieve an automatic cycle of “bottle feeding—positioning—filling—bottle discharge”:

Bottle Feeding and Positioning: A chain conveyor transports bottles to the filling station. When the photoelectric sensor detects a bottle, the conveyor automatically stops, and positioning clamps secure the bottle body based on the neck height.
Mixing and Feeding: A rotary blade agitator continuously stirs the paste in the hopper to prevent separation and sedimentation; the material enters the metering piston cylinder via a high-quality rotary valve.
Metered Filling: The PLC sets the filling volume; a pneumatic cylinder drives the piston to inject the metered amount of material into the bottle through a drip-proof filling nozzle. The four filling nozzles operate independently without interfering with one another.
Anti-drip and Reset: Upon completion of filling, the anti-drip device inside the filling nozzle instantly cuts off the flow of liquid, ensuring no stringing or dripping. The conveyor belt then automatically resumes operation, transporting the filled bottles out while the next set of bottles enters the workstation.
No-Bottle, No-Fill: If the photoelectric sensor does not detect a bottle, the filling head automatically skips that station to prevent filling an empty bottle.

The entire process operates in an intermittent automatic mode with adjustable parameters to accommodate different bottle shapes and filling volumes.

Technical parameters

Model	GT-4T
Equipment Name	Fully Automatic 4-Head Paste Filling Machine
Equipment Material	304 Stainless Steel
Filling Speed	10-40 Bottles/Minute
Working Air Pressure	0.4-0.8MPA
Working Power	220V 50/60HZ 300W
Metering Accuracy	±1%
Applicable Bottle Height	10-500MM
Applicable Bottle Neck	3-200MM
Optional Filling Volume	10-100ML, 30-300ML, 50-500ML, 100-1000ML, 500-3000ML, 1000-5000ML
Applicable Materials	Paste, Liquid
Packaging	Wooden Box
Control System	PLC

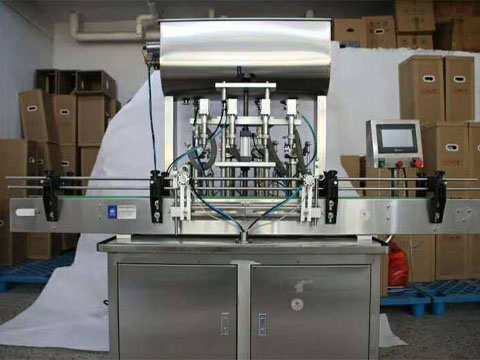

Structural Components

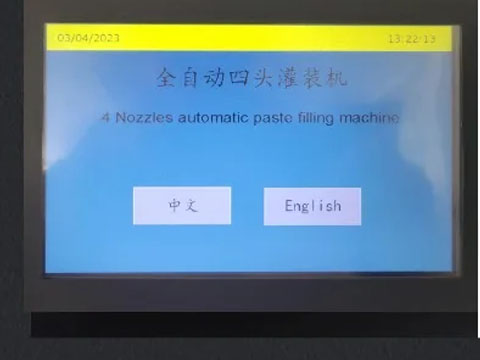

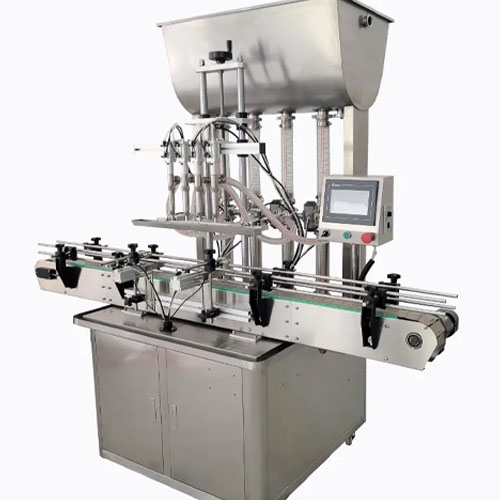

Intelligent Control Panel: Equipped with a built-in PLC and sensors, it allows for digital adjustment of conveying speed, filling volume, and filling rate, eliminating the instability associated with knob-based adjustments.
Rotary Blade Agitator: The specially designed rotary blade structure ensures more uniform and smooth mixing, preventing sedimentation or separation of paste-like materials.
High-Quality Rotary Valve: Specifically developed for cream and paste materials, it offers smooth directional switching and excellent sealing performance, easily handling high-viscosity materials.

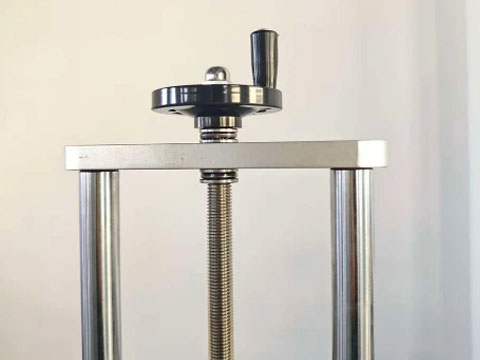

Height Adjustment Device: Quickly adjusts the clamping position according to the bottle neck height, accommodating different bottle types without the need to replace parts.

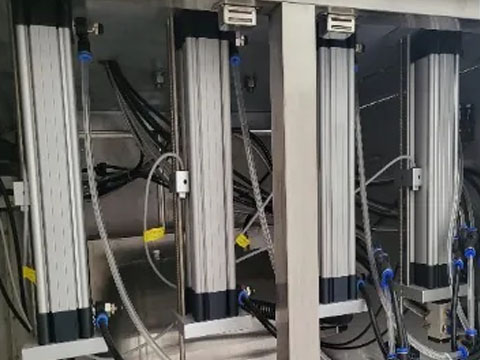

High-Quality Cylinders: Brand-name cylinders ensure fast operation and long service life, supporting 24-hour high-frequency operation.
High-Quality Electronic Components: Utilizes top-tier brand electrical components for system stability and low failure rates.

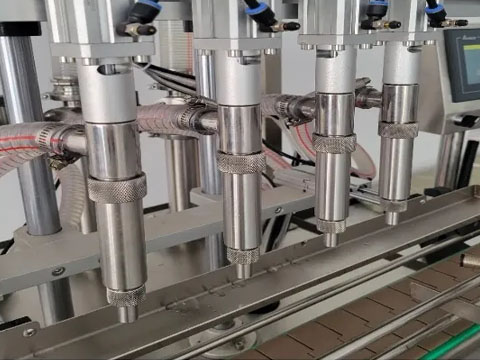

Anti-drip Filling Heads (4 heads): Each filling head features independent height and flow rate adjustment, with a built-in anti-drip mechanism, achieving a filling accuracy of ±1%.

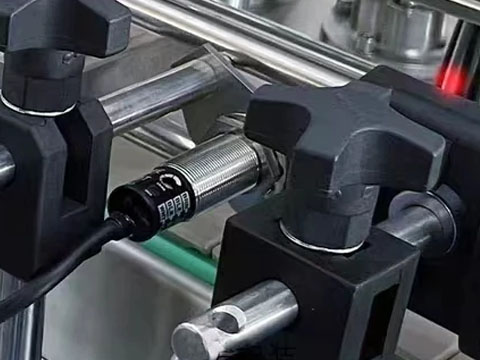

Photoelectric Sensing + Intermittent Filling: The conveyor belt automatically stops when a bottle is detected and resumes operation upon completion of filling, ensuring no filling occurs without a bottle present.
Chain-Link Conveyor Belt: The chain-link structure is wear-resistant and durable; individual sections can be replaced independently, resulting in low maintenance costs.

Key Advantages

±1% High Precision, Drip-Free and String-Free: The multi-head drip-free filling nozzle, combined with a precision rotary valve, ensures filling accuracy remains within ±1%. The flow is instantly cut off upon completion of filling, leaving the bottle opening clean and free of strings or drips, thereby preventing product waste and secondary contamination.
Corrosion-Resistant, High-Temperature-Resistant, Acid and Alkali-Resistant: All material-contact parts are made of food-grade stainless steel, enabling the filling of acidic (tomato sauce), alkaline, salty (chili sauce), or high-temperature materials. The machine is easy to clean and simple to disassemble and reassemble.
Supports Continuous Operation: Equipped with branded pneumatic and electrical components, the machine is durable and supports uninterrupted production. With an extremely low failure rate, it ensures on-time delivery.
Quick Bottle Changeover Without Part Replacement: By adjusting the positioning clamps and the height of the filling head, the machine can accommodate bottles of various shapes and sizes without replacing any parts, significantly improving changeover efficiency.

Applications

This machine is not only suitable for pastes but can also fill a variety of liquid and semi-liquid materials. Whether dealing with pure pastes, pastes containing particles, or semi-liquid pastes, it achieves precise and efficient filling, accommodating the needs of paste materials with varying viscosities. This includes, but is not limited to:

Food products: tomato sauce, chili sauce, honey, jam, salad dressing, peanut butter, etc.
Personal Care: Face cream, shampoo, body wash, lotion, conditioner, etc.
Chemicals: Lubricants, adhesives, coatings, paste-like additives, etc.

Optional Equipment and Assembly Line Solutions

Optional Equipment

Bottle Organizer: Automatically organizes empty bottles and feeds them in an orderly manner into the filling machine.
Capping Machine / Cap Sealing Machine / Integrated Cap Feeding and Capping Machine: Select based on the type of bottle cap.
Automatic Labeling Machine: Performs the labeling process after filling.

Recommended Production Line Configuration

Bottle Sorter → Automatic Paste Filling Machine → Integrated Cap Feeding and Capping Machine → Automatic Labeling Machine
4-head paste filling machine + automatic cap screwing machine
6-head paste filling machine + automatic cap placement + automatic cap screwing machine

Why Choose Us?

The fully automatic 4-head paste filling machine is a filling solution designed specifically for “high efficiency, stability, and cleanliness.” It can be used as a standalone unit or seamlessly integrated into a fully automated production line, helping you reduce labor costs, improve filling quality, and achieve 24-hour continuous production.

If you have any needs for food processing equipment, please feel free tIn addition to the 4-head model, we also offer 2-head, 8-head, and 12-head paste filling machines. If you are looking for corrosion-resistant, high-precision, and drip-free paste filling equipment, please contact us for detailed technical specifications.

As a professional food machinery supplier with years of manufacturing and export experience, our products have obtained various certifications. If you have any other food machinery-related needs, please feel free to contact us.
