Introduction

This commercial meat slicer and shredder is a versatile meat processing machine that combines slicing and shredding functions. Featuring a dual-blade parallel design, it can shred meat in a single pass or switch to slicing mode independently, delivering multi-functional performance. With adjustable blade spacing ranging from 2.5mm to 15mm, it offers customizable solutions for diverse ingredient processing needs. Widely used in restaurants, cafeterias, central kitchens, and meat processing facilities.

Motor Power: 2.2KWx2
Processing Capacity: 400Kg/H

send us email

Leave a Message

wahtsapp

Working Principle

This commercial meat slicer and shredder achieves efficient, precise cutting through its core “dual-motor drive + dual-blade assembly coordination” operating mode. The unit features two built-in 2200W pure copper core motors, each independently driving a separate cutting blade assembly. These motors deliver powerful yet stable performance, while the enclosed design prevents dust and food residue ingress, extending service life.

During operation, users select either shredding or slicing mode via dual independent switches, activating the corresponding blade set for high-speed cutting. Ingredients are placed on the large stainless steel tray and pushed through the feed inlet, protected by a safety guard. After processing, the enlarged discharge port ensures rapid, residue-free collection.

The dual-blade assembly stands as the core innovation. Coordinated operation of two blade sets achieves single-pass shredding without secondary processing, significantly boosting efficiency. Interchangeable blades with varying spacing accommodate diverse cutting needs—thin slices, thick slices, fine strips, coarse strips, and minced meat—by adjusting blade distance to suit different ingredients.

Usage and Disassembly Videos

Technical parameters

Product Model	WZ-QR Meat Slicer/Shredder
Voltage	220V
Motor Power	2.2KWx2 (Dual Motors, Single Control Available)
Processing Capacity	Approx. 400Kg/H
Blade assembly dimensions	Matches available upon request, dual-blade assembly for easy disassembly
Packet Dimensions	Approx. 530x570x60MM
Feed Inlet	Approx. 120x90MM
Machine Weight	Approx. 88Kg
External Dimensions	Approx. 620x590x860MM
Material	Stainless Steel

Structural Components

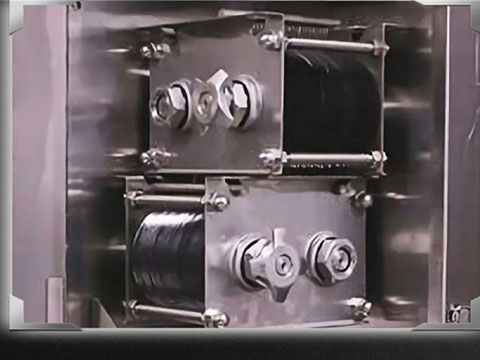

Dual Blade System: Two independent stainless steel blade assemblies for shredding and slicing, with customizable blade spacing (2.5–15mm).
Dual Motor System: Two 2200W pure copper core motors independently drive each blade assembly, delivering powerful performance and smooth operation.
Stainless Steel Body: Constructed entirely from stainless steel for corrosion resistance, structural integrity, and easy cleaning.
Feed Tray: Oversized stainless steel tray facilitates easy loading, ideal for continuous operation.
Safety Feed Guard: Protects operator hands, compliant with food machinery safety standards.
Heat Dissipation System: Body features ventilation holes to prevent motor overheating during prolonged use.
Discharge Port: Enlarged design ensures smooth material flow and prevents residue buildup.
Caster Feet: Equipped with brakes for flexible mobility and stable positioning.

Advantages of the Meat Slicer and Shredder Machine

High-Efficiency Cutting: Dual motors and dual blades work together for powerful cutting, resulting in high efficiency in slicing and shredding, suitable for batch processing.
Multi-Functional Use: Capable of slicing, shredding, and mincing meat, suitable for various ingredients including pork, beef, fish, kelp, bean curd sheets, and mushrooms.
Precision Cutting: Adjustable or custom blade spacing accommodates varying thickness requirements, delivering neat and uniform cuts.
Easy Disassembly & Cleaning: Blades detach effortlessly for direct water rinsing, eliminating hygiene blind spots and meeting food safety standards.
Safety Design: Feed guard and enclosed structure ensure safe operation, preventing accidental contact with the blade assembly.
User-Friendly Operation: Dual independent switches allow one-touch switching between shredding and slicing. Simple operation requires no specialized skills, enabling quick mastery even for beginners.
Durable and Reliable: All-stainless steel body + all-steel blade assembly + pure copper motor. Sturdy construction offers corrosion resistance, wear resistance, and extended service life.

Meat Slicer and Shredder Machine Applications

Restaurant Kitchens: Rapidly process shredded and sliced meat to boost serving efficiency.
Central Kitchens: Batch-process meat ingredients with standardized cutting dimensions.
Food Processing Plants: Used for meat product pre-processing, such as producing shredded meat, sliced meat, and ground meat.
Cafeterias and Distribution Centers: Meet high-volume ingredient processing demands while reducing labor costs.
Specialty Dish Preparation: Capable of slicing various garnishes like shredded kelp, ginger strips, and bean curd sheets.

Why Choose Us?

Wanzhi Machinery has specialized in commercial food processing equipment for years, ensuring reliable quality. This commercial meat slicer and shredder is a high-quality fresh meat cutting device. Its motor features pure copper windings for powerful performance and low noise. The blade assembly is removable for easy cleaning and maintenance, and blades can be customized to meet customer requirements. We also provide comprehensive pre-sales consultation and after-sales service to ensure worry-free operation.

Beyond meat processing machinery, we supply fruit and vegetable processing equipment, oil presses, colloid mills, stainless steel tanks, and more. For any inquiries, please contact us anytime.
