Introduction

This commercial fully automatic meat cube cutter efficiently processes various meats, delivering precise cuts and high production capacity.

The Fully Automatic Meat Cube Cutter rapidly and precisely cubes fresh meat, frozen meat, poultry, and bone-in cuts into uniform pieces, significantly boosting production efficiency while reducing labor costs. Its compact design, user-friendly operation, and compliance with food hygiene standards make it an ideal choice for modern meat processing.

send us email

Leave a Message

wahtsapp

Working Principle

This machine employs a cutting method combining a conveyor belt system with rotating blades. During operation, the meat to be cut is placed on the conveyor belt, which smoothly transports it into the cutting zone.
An overhead chain-driven meat press firmly secures the meat to prevent slippage, after which high-speed rotating precision steel blades perform the cutting.
The blade spacing can be easily adjusted via screws to control the size of the cut pieces.
The cut meat flows smoothly out through the inclined discharge chute, enabling continuous operation.

Technical parameters

Product Name	Fully Automatic Meat Cube Cutter
Model	XS-QK130A
Voltage	220v/380v
Power	3.0kw/1.5kw
Rated Frequency	50Hz
Capacity	600-750kg/h

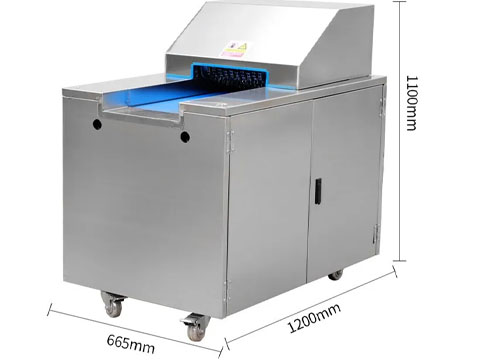

Dimensions	1200x665x1100mm
Machine Weight	250kg
Cutting Length	15-50mm
Material	Stainless steel

Structural Components

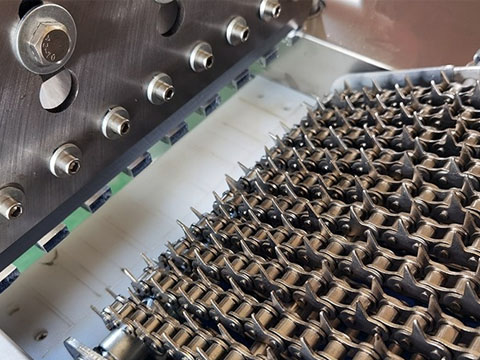

Chain-Style Meat Press Plate: Features reinforced stainless steel chains for superior meat-gripping strength, ensuring meat remains stable and secure during cutting—ideal for smooth-surfaced or bone-in cuts.

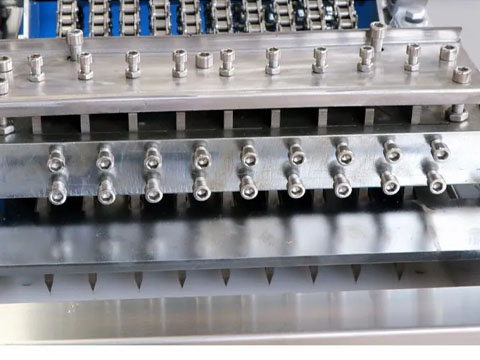

Premium Steel Blades: Specially heat-treated blades deliver sharp, durable performance with clean cuts that minimize meat splintering, guaranteeing consistent cutting quality.
Adjustment Screws: Located on both sides of the blade assembly, these allow precise adjustment of blade spacing to accommodate various cutting thicknesses (e.g., 10mm, 20mm, 30mm).
Convenient Switch: One-touch start/stop operation with a stable and reliable control circuit. Equipped with an emergency stop button to ensure operational safety.
Premium Conveyor Belt: Food-grade PVC diamond-pattern belt with slip-resistant surface and easy cleaning, meeting food safety standards for smooth operation.

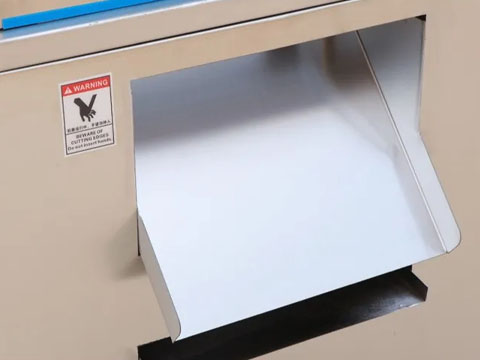

Discharge Outlet: Tilted design with optimal angle allows cut meat to slide out quickly, preventing jams.
Pure Copper Motor: Built-in high-power pure copper wire motor delivers robust power, stable operation, low noise, and sustained long-term performance.
Stainless steel body: Entire unit constructed from food-grade stainless steel with a brushed finish, offering corrosion resistance, easy cleaning, and compliance with food-grade hygiene standards.

Advantages of the Fully Automatic Meat Cube Cutter

Fully Automatic High-Efficiency Cutting: No manual pressing required. Simply place meat on the conveyor belt, and the machine automatically completes cutting, significantly boosting efficiency. It can process hundreds of kilograms of meat per hour.
Hygienic and Easy to Clean: Flat-panel body design eliminates sanitation blind spots. Stainless steel construction allows direct water rinsing, while the removable conveyor belt facilitates daily maintenance.
Adjustable Cutting Dimensions: Quickly modify blade spacing via adjustment screws to accommodate varying customer requirements for meat chunk sizes, offering high flexibility.
Safety Protection Design: Equipped with a safety pressure bar and emergency stop device. Hands remain distant from blades during operation, effectively preventing accidental injuries.
Exceptional Durability: Reinforced track belt, high-strength alloy steel blades, and pure copper-wound motor ensure extended service life with minimal failure rates.
Versatile Application: Processes not only fresh meat but also frozen cuts and bone-in poultry, serving multiple processing scenarios with one machine.

Fully Automatic Meat Cube Cutter Applications

This machine is widely used in meat processing plants, pre-cooked meal enterprises, cafeterias, hot pot restaurants, barbecue shops, and similar establishments. It is suitable for block cutting of various meat products, including but not limited to:

Poultry: Whole chickens, whole ducks, chicken legs, duck legs, chicken breasts, duck necks, etc.
Pork: Pork trotters, lamb ribs, beef ribs, pork ribs, beef bones, etc.
Seafood: Whole fish, fish fillets, frozen fish, etc.
Others: Frozen meat, fresh meat, rabbit meat, bones, etc.
