Introduction

This fully automatic pouch packing machine is an automated packaging solution specifically designed for liquids, viscous substances, and semi-fluid materials. It handles the production and filling of flat pouches and pillow pouches with various sealing configurations, serving industries such as daily chemicals, food, condiments, pharmaceuticals, and chemicals. It achieves precise, hygienic, and efficient packaging for materials like shampoo, sauces, and beverages.

Material: 304
Packaging Capacity: 5 – 2000ml

send us email

Leave a Message

wahtsapp

Packaging Process Flow

The coordinated operation of core components ensures a smooth packaging process, including the following steps:

Film Feeding and Bag Forming: Packaging film is smoothly conveyed via guide rollers and rapidly shaped into the initial form of flat or pillow bags through the forming unit;
Bag Making and Sealing: The film is formed into a tubular shape by the forming unit and sealed into bags via longitudinal and transverse sealing devices;
Precision Filling: A piston pump metering device injects material into the bag at a uniform rate according to preset parameters, preventing overflow or underfilling;
Unit Cutting: The sealed continuous bag is cut by a cutting device into individual packaging units;
Finished Product Processing: Automatic counting and batch number printing are completed simultaneously, ultimately outputting qualified finished products without requiring segmented operations throughout the process.

Technical parameters

Model	BLT-S100	BLT-S200	BLT-S300	BLT-S500
Pouch-making width (mm)	50-150	50-300	50-300	80-300
Pouch-making width (mm)	25-120	25-190	70-190	90-190
Packaging film width (mm)	60-240	60-380	160-380	200-380
Packaging capacity (ml)	5-100	50-300	50-1000	200-2000
Packaging speed (bags/min)	30-60	30-60	20-40	15-30
Power (KW)	1.6
Air Power (MPa)	0.65
Air consumption (L/min)	150	180	180	200
Overall dimensions (mm)	760x1380x1700	900x1800x2040	900x1800x2040	900x2000x2040
Machine weight (kg)	300	380	480	650

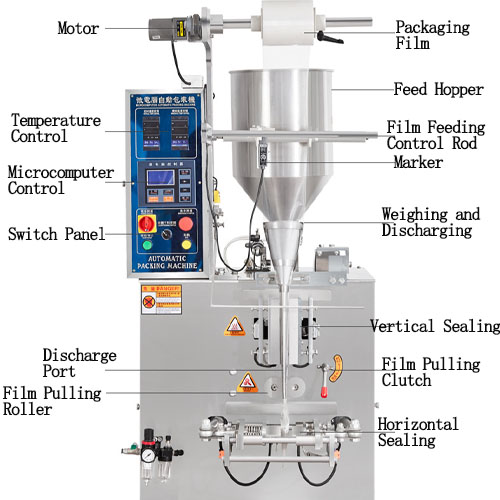

Structural Composition

Core Power and Transmission System: Motor, Film Feed Rollers, Film Feed Clutch, Film Feed Control Lever.
Intelligent Control Module: Microcomputer Control, Temperature Control, Switch Panel.
Material Handling and Conveying System: Feed Hopper, Weighing and Dosing Unit, Discharge Outlet.
Sealing and Forming System: Vertical Sealing (Longitudinal Sealing) Unit, Horizontal Sealing Unit.
Film Adaptation and Positioning System: Packaging film, mark sensor (photoelectric mark positioning device).

Note: Hopper shape is customizable. For other custom requirements, please send us your specifications.

Applications of Pouch Packing Machines

Personal Care: Shampoo, conditioner, hand soap, etc.;
Food & Seasonings: Soy sauce, sauces, beverages, alcoholic drinks;
Pharmaceuticals & Chemicals: Cough syrup, liquid pesticides, disinfectants, etc.

Our Pouch Packing Machine Product Advantages

Intelligent Operation: Touchscreen intuitively displays operational data, simplifies adjustments, and reduces reliance on operator expertise;
Full-Process Automation: Automates every step from bag forming, metering, filling, sealing, cutting, counting, to batch number printing, significantly boosting production efficiency;
Flexible Adaptability: Supports multiple bag types including back-seal, three-side seal, and four-side seal. Quickly switches according to product requirements to accommodate diverse packaging designs.
High-Quality Packaging: Equipped with photoelectric control devices for precise alignment of bag patterns, ensuring print integrity. Tight sealing and accurate metering enhance product packaging quality.
Hygienic Safety: Constructed from 304 stainless steel meeting food and pharmaceutical hygiene standards. Corrosion-resistant and contamination-free, suitable for high-standard sanitary environments.

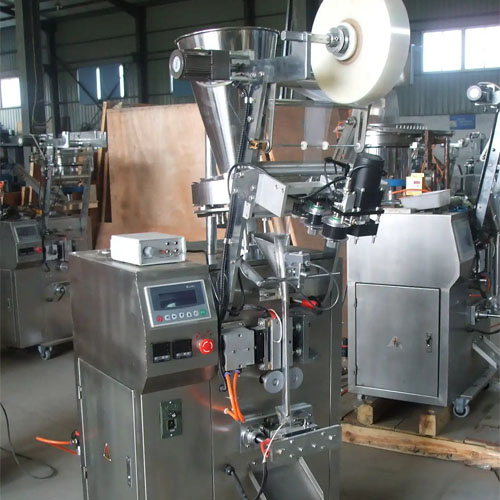

Different types of bag packaging machinery

Why Choose Us?

We are a professional supplier of food industry machinery with over 14 years of production and export experience. For businesses seeking production efficiency and packaging quality, this packing machine offers a reliable integrated solution. Contact us for more details.
