Rib/Frozen Meat Slicer

Home » Meat Cutting Machine » Rib/Frozen Meat Slicer

Introduction

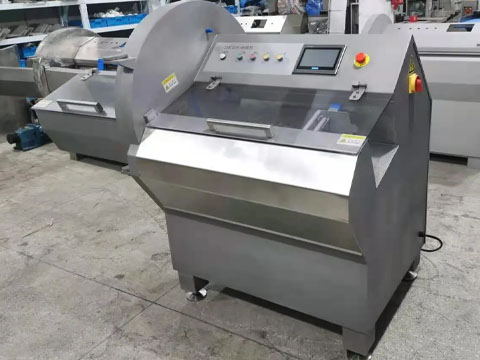

The Commercial Electric Rib/Frozen Meat Slicer is a CNC fully automatic cutting device specifically developed for commercial food processing scenarios. It delivers high cutting precision with German-imported blades, achieving a cutting speed of up to 210 cuts per minute.

It handles slicing and dicing requirements for ribs, frozen meat, steak, beef/lamb, cheese, and various fish varieties. Suitable for bulk processing in restaurant kitchens, food processing plants, and pre-cooked meal manufacturers.

send us email

Leave a Message

wahtsapp

Working Principle

Material Clamping: Place ribs or frozen meat blocks onto the clamping-equipped feed tray. Secure ingredients firmly with clamps and material-holding plates to prevent shifting during cutting.
Precision Feeding: A servo motor drives the feed table via a precision ball screw, advancing it along linear guides toward the blade at a controlled speed. This intelligent synchronization ensures consistent, precise thickness with every cut.
High-Speed Cutting: The German-imported blade is directly driven by an electric motor via a reduction gearbox. It reciprocates vertically at up to 320 strokes per minute, slicing the fed ingredients into uniform pieces.
Two Operating Modes: Continuous mode is suitable for ingredients with less stringent thickness requirements and lower material height, featuring continuous feeding for higher efficiency; intermittent mode intelligently calculates based on blade position, employing intermittent feeding to ensure precise and stable slice thickness.

Operating Instructions

Technical parameters

Product Model	WZ-KPJ210	WZ-KPJ250
Voltage	380v
Power	3.6kw
Outlet Size	210*190mm	250*210mm
Processing Capacity	210 times/minute
Dimensions	18308501300mm	18309201300mm
Machine Weight	600kg	650kg
Slicing Thickness	0.5-30mm
Suitable meat temperature	-4℃ ~ 0℃
Material	304 stainless steel

Structural Components

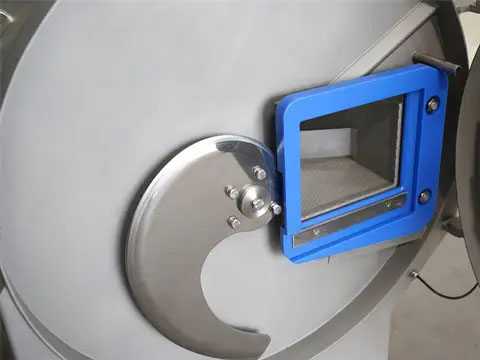

Imported Single Blade: Forged from special steel and precision heat-treated for sharpness and durability. Removable for repeated sharpening. Custom bone-in or boneless blades available based on cutting requirements.

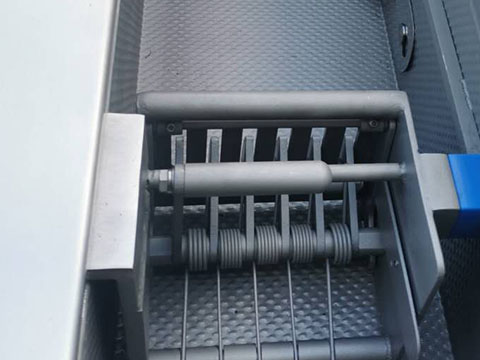

Material Clamp: Press down the clamp handle to secure ingredients. Accommodates items up to 700×210×190mm with stable, non-slip grip.
Material Clamping Plate: Adjustable to fit different ingredient sizes, precisely secures food to prevent cutting deviation and ensure uniform thickness.

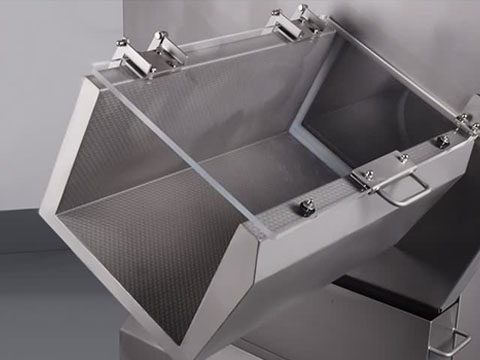

Glass Safety Covers: Transparent covers protect both the feed and discharge openings, allowing easy monitoring of cutting progress while effectively isolating the cutting zone for enhanced safety.

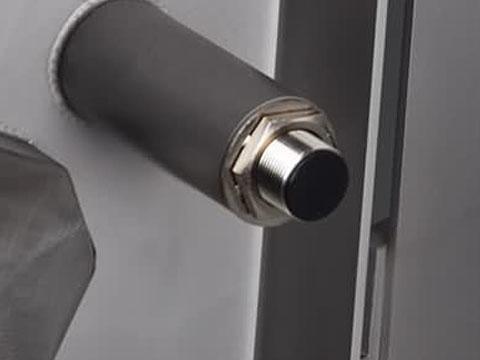

Safety Sensor: Immediately halts operation when the cover is opened or abnormal contact is detected, minimizing accident risks.

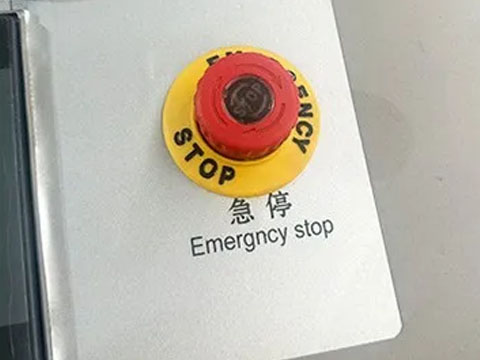

Emergency Stop Button: Prominently located on the control panel for instant shutdown during emergencies, ensuring worry-free operation.
Stainless Steel Body: Entire unit constructed from food-grade stainless steel welded for durability and easy cleaning.
Material Collection Box: Integrated material collection device eliminates the need for extra containers, boosting work efficiency.

Advantages of the Rib/Frozen Meat Slicer

High Precision: 0.01mm cutting accuracy, digitally controlled temperature and cutting parameters ensure uniform slice dimensions, meeting standardized production requirements.

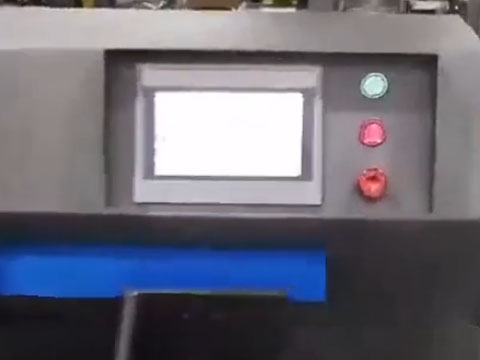

Smart CNC: Digitally set slice thickness, cutting speed, and portion count. Intuitive interface with flexible parameter adjustments.
High Efficiency & Stability: 210 cuts per minute at high speed. Continuous/intermittent modes significantly reduce processing time and boost output.
Imported Blades: Core blades crafted from German-imported materials ensure sharpness and durability. Cuts through bone-in ingredients without chipping or jamming, guaranteeing clean, even cuts.
Portion Counting Function: Preset slice quantities for automatic counting and portioning, ideal for standardized packaging needs in pre-made meals and takeout foods.
Safety and reliability: Multiple safety protections, including cover sensors and emergency stop buttons, ensure operator safety.
Easy maintenance: Removable blades for sharpening and a well-designed body structure enable simple daily cleaning and maintenance, meeting food hygiene standards.

the Rib/Frozen Meat Slicer Applications

Suitable for slicing: Fresh ribs, frozen ribs, frozen meat chunks, steak, pork chops, lamb chops, pork belly, beef jerky ingredients, salmon, tuna, trout, mackerel, and other fish, as well as semi-hard ingredients like cheese. Application scenarios include:

Restaurant Chains: Western restaurants, Japanese eateries, yakiniku joints, etc., for preparing ingredients like steak, lamb chops, and pork belly slices.
Meat Processing Plants: For bulk slicing of ribs, frozen meat chunks, and beef jerky raw materials.
Central kitchens: Providing standardized thickness meat slices for pre-cooked meals and fast-food distribution.
Cafeterias and group catering: Corporate/institutional cafeterias and school cafeterias for efficient processing of ribs, frozen meat, and similar ingredients.
Deli processing: Slicing ham, sausages, cheese, and other deli items.
